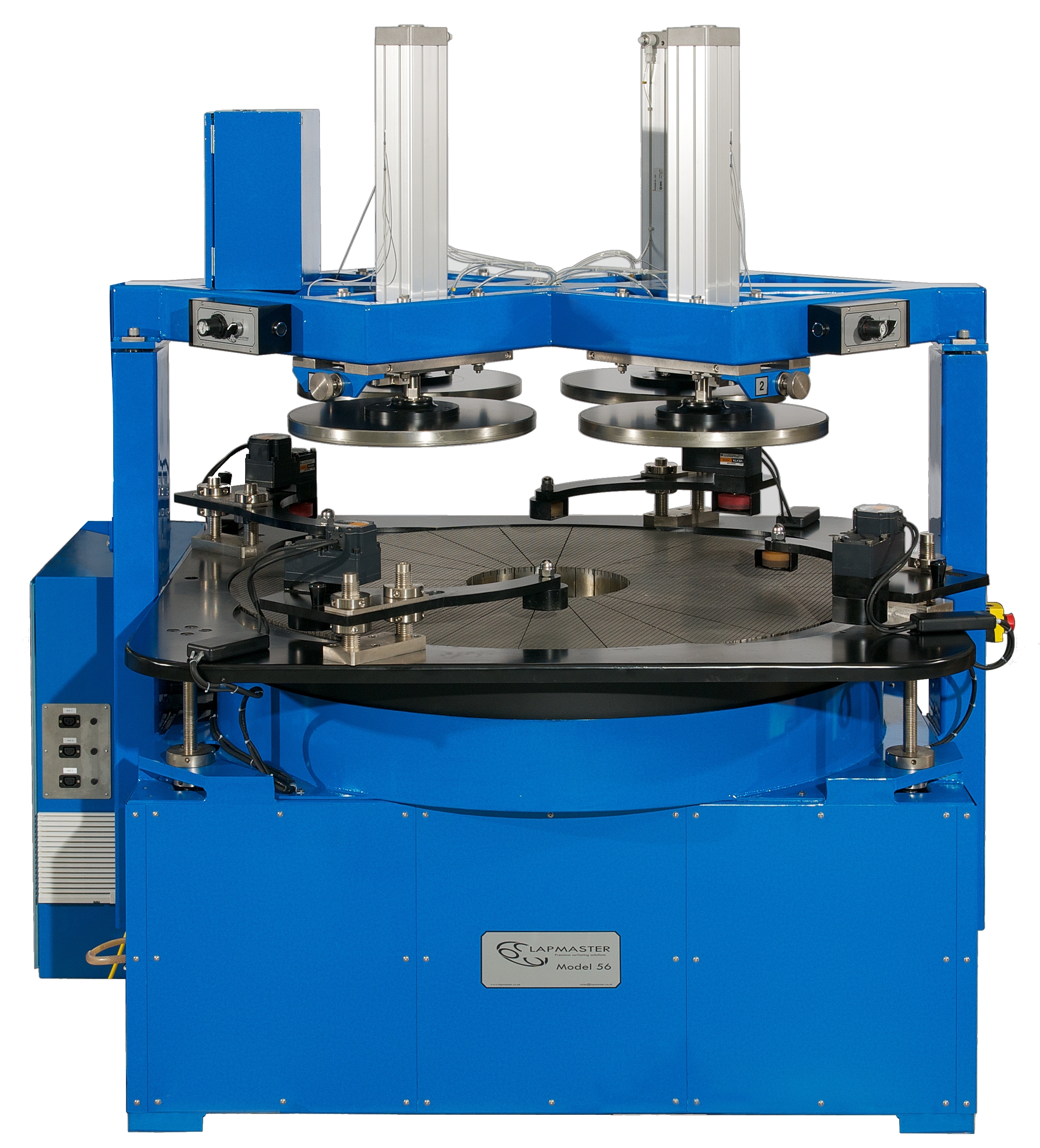

The Lapmaster Wolters Model 56 PL machine is an uprated version of the Model 48, with a larger diameter lap plate and support plate and correspondingly larger conditioning rings.
The serrated lap plate is made up of twenty four individual segments which are bolted to the support plate.
The height of the surrounding worktable can be adjusted so that it can be set just above the lap plate surface to prevent the sharp edge being exposed.
The lap plate drive system uses a separate motor and worm and wheel reduction gearbox with multibelt drive and is mounted in a substantial floor standing base. The base is fabricated from welded hollow-section steel, clad with removable panels for maintenance. The electrical controls are housed in a console mounted at the front of the machine, and a second emergency stop button is fitted at the rear of the machine.
The machine uses a free abrasive slurry, which is supplied from a separate free standing reservoir, equipped with a pump and driven blade stirrer. A diamond slurry dispensing system can also be fitted if required.
This machine is also available in pneumatic lift version and as an open face machine with three special size conditioning rings.
