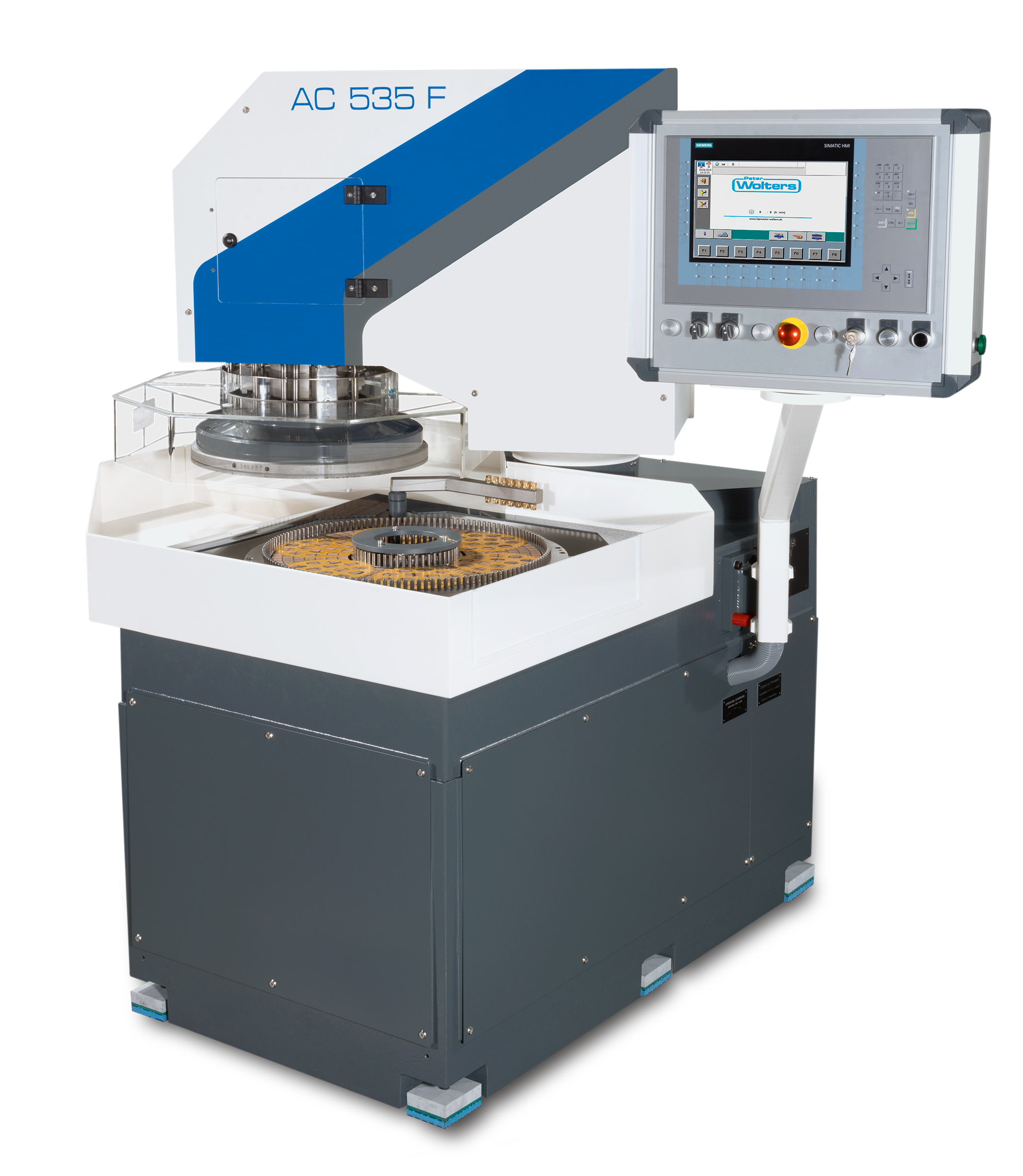

AC 535 F

Double-sided Fine Grinding Machine

The Peter Wolters AC 535 F is a highly flexible, very compact double-sided batch processing machine machine with a pneumatic loading system. The machine can alternatively be equipped with a manual loading table. The swivel functionality enables optimum ergonomic access for the machine operator.

• Designed for high-precision processing of small work pieces

• Optimum surface quality, flatness, thickness tolerance and plane parallelism with tightest tolerances on the work piece
• Large portfolio of options to enable complex processes

Work pieces up to 170 mm diameter, 50 mm thickness

Characteristics AC 535 F Fine Grinding Machine

• Fast, ergonomic loading and unloading
• Swivel-out upper work disk for optimum access to the work area
• Extreme temperature stabilization over the entire tool surface
• User-friendly, intuitive operation
• Excellent machining results and maximum precision
• Low operating costs Individual process development
• Extremely low-maintenance / maintenance-friendly
• High-precision non-contact measuring control
• Powerful drive technology
• High-precision pneumatic loading system
• High production reliability
• Stable cast iron machine bed
• Siemens PLC control and Siemens KP1200 Comfort operating panel
• RangeCare® remote maintenance solution via mobile radio or VPN
