DL 700 Polishing Machines
This Lapmaster line of Dual-Face-polishing machines are designed to yield precise and repeatable results at a higher accuracies. Applications requiring conventional abrasive, diamond super abrasive, and fixed abrasive processes are all easily accommodated through robust construction and the use of high-quality machine components.
- Three independent variable speed drives. 6 carriers, component thickness 0.4- 40 mm (0,0157- 1,57"), component diameter of max. 205 mm (8,07")
- Automatic thickness control
Flatness capabilities < 1 μ | Part to Part Size Variance < 4 μ
Parallelism < 3 μ | Surface Finish < 0,25 Ra | Stock Removal 0,024″ / 0,6 MM
(Subject to Component Specifications)
.

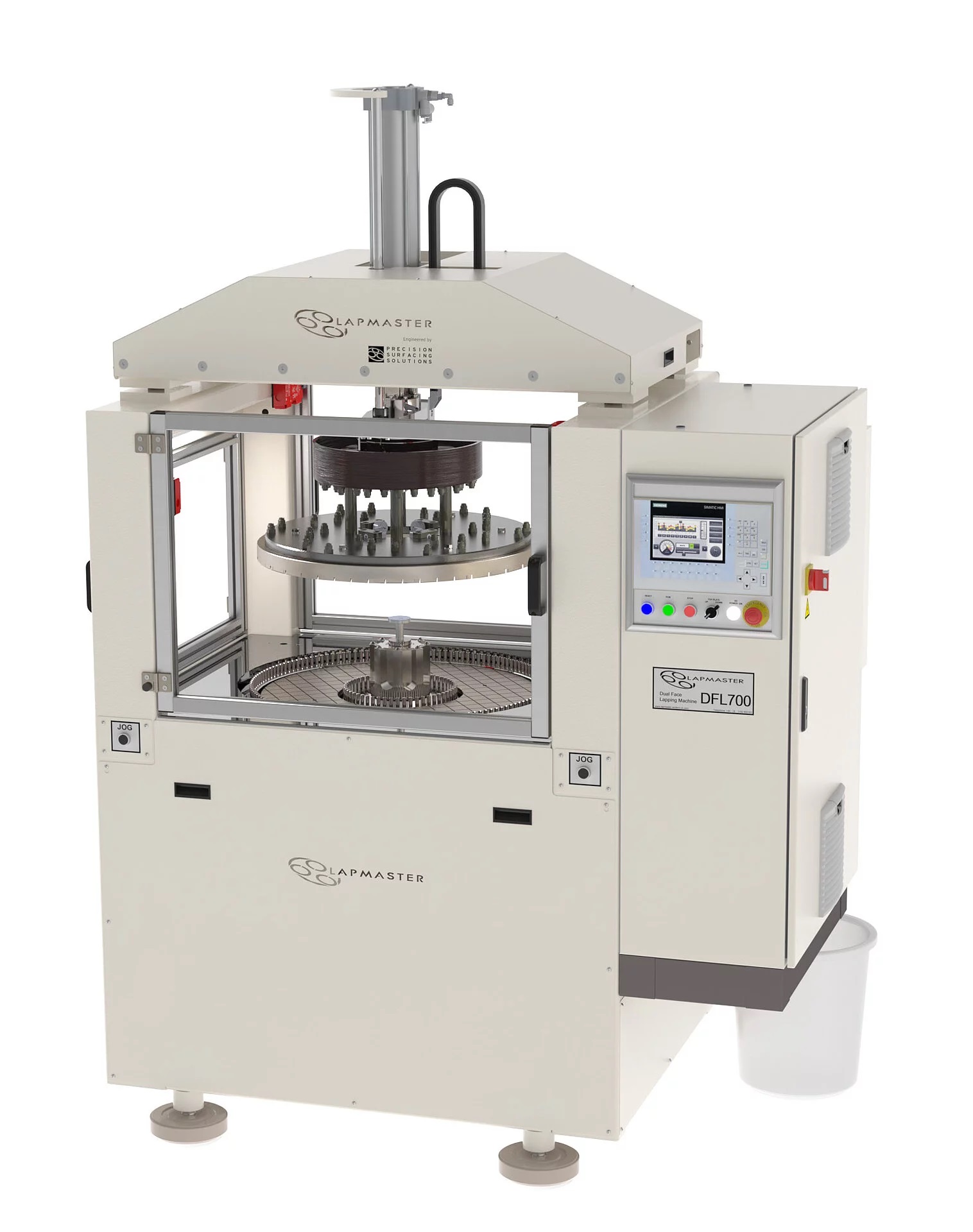

DFL 700 Polishing Series Machines
STANDARD FEATURES
- Pneumatic / load cell down pressure system
- In process automatic plate flattening
- Abrasive slurry distribution system with reservoir tank and agitator unit
- Waste tank
- One set cast iron lap plates
- One set cast iron serrated conditioning gears
- One set work carriers
OPTIONAL TOOLING
- Solid stainless steel backing plates
- Polishing pads
- Composite faced plates CBN and diamond pelleted grinding plates
OPTIONAL FEATURES
- Stainless steel wetted parts
- Diamond pelletal conditioning gears for Pad polishing
- Brush conditioning gears for Pad polishing
- Optional plates
