Model 15 Precision Open-Face Lapping Machine (Legacy)

Compact Design, Precision Performance, and Reliable Flatness Control

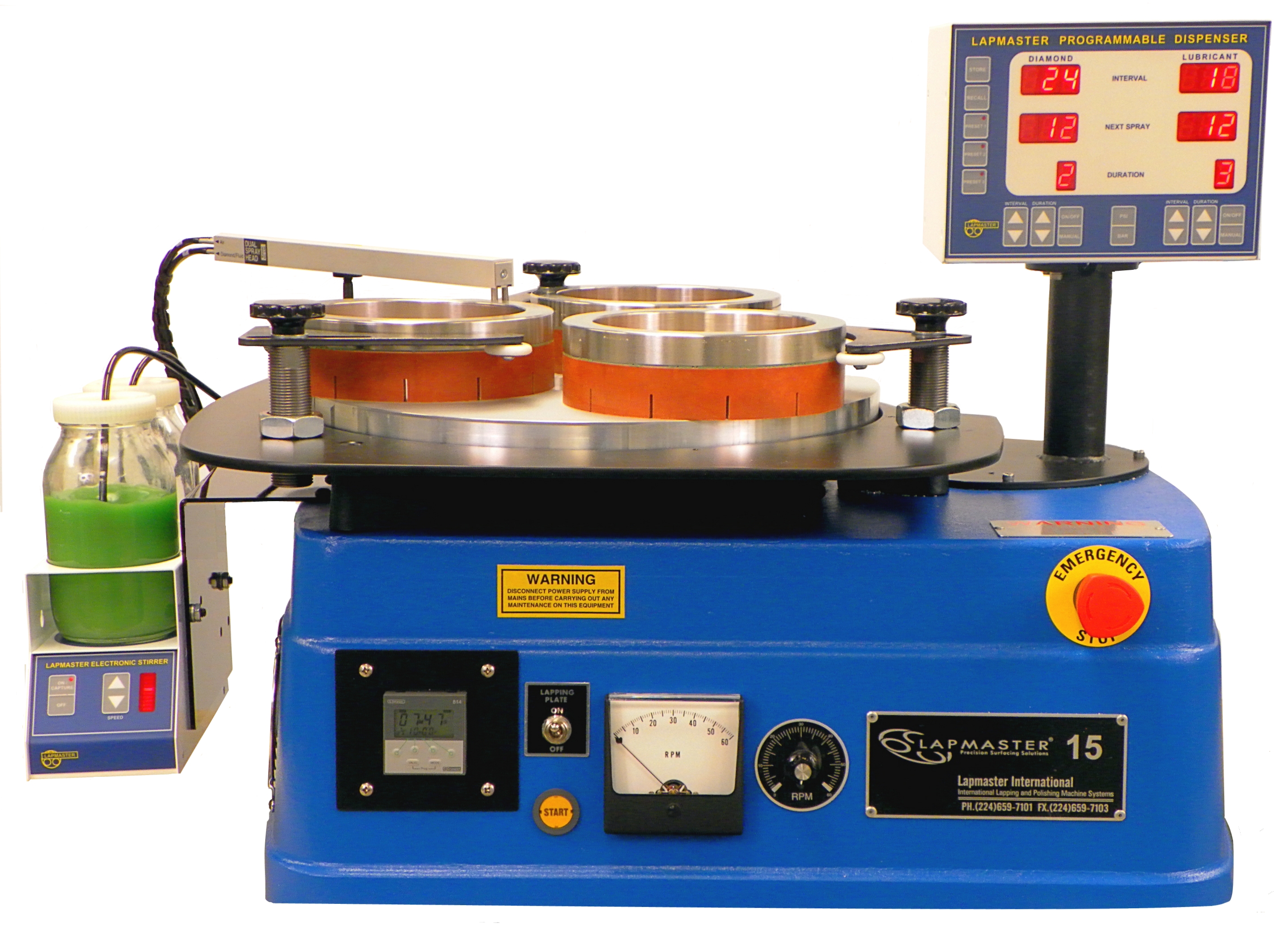

The Lapmaster Wolters Model 15 Precision Open-Face Lapping Machine is engineered to deliver consistent surface quality, precise flatness control, and dependable performance in a compact, operator-friendly design. Built with a rigid cast aluminum base and a wrap-around worktable, the Model 15 provides a stable platform while allowing convenient access for workpiece loading, unloading, and handling.

Equipped with three high-density cast iron conditioning rings featuring roller yoke and bearing assemblies, the Model 15 enables effective in-process lap plate flatness control. Its abrasive feed system accommodates both water- and oil-based lapping slurries, supporting consistent abrasive delivery throughout the finishing process.

The machine features a high-torque drive system with a gear reducer, an automatic digital cycle timer, and flexible electrical configurations. With optional variable-speed control, diamond slurry dispensing systems, and specialized lapping or polishing plates, the Model 15 can be tailored to meet a variety of precision surface finishing requirements.

Key Features & Benefits

• Rigid Cast Aluminum Construction: Durable machine base provides stability and support for consistent precision lapping performance.

• Open-Face Design: Wrap-around worktable offers convenient access to the lapping area, simplifying workpiece loading, unloading, and handling.

• Precision Flatness Control: Three high-density cast iron conditioning rings with roller yoke and bearing assemblies help maintain lap plate flatness during operation.

• High-Quality Lapping Surface: Radially serrated cast iron lap plate designed for consistent material removal and uniform surface finishing.

• Versatile Abrasive Compatibility: Abrasive feed system supports both water- and oil-based lapping slurries.

• Reliable Drive System: High-torque motor and gear reducer provide dependable operation for precision surface processing.

• Automatic Process Timing: Digital cycle timer supports consistent, repeatable processing cycles.

• Compact Footprint: Space-efficient design provides precision lapping capabilities without requiring extensive floor space.

• Flexible Configuration: Optional soft-start, variable-speed control, diamond slurry dispensing, and specialized tooling accommodate different application requirements.

Standard Equipment

• Rigid cast aluminum machine base

• Open-face design with wrap-around worktable

• High-density, radially serrated cast iron lap plate

• Three high-density cast iron conditioning rings

• Three cast iron pressure plates with lifting eye-bolts

• Three Micarta workholder blank discs

• Three pressure pads

• Hardened steel straightedge

• Abrasive feed system compatible with water- and oil-based slurries

• Automatic digital cycle timer

• High-torque motor with gear reducer

• Starter samples of Lapmaster abrasive and vehicle

• Allen wrench

• Vinyl machine cover

Technical Specifications

Optional Features

• Soft-Start System: Cushions machine start-up for smoother operation.

• Electronic Variable-Speed Drive: Adjustable operating speed from 0–70 RPM for enhanced process flexibility.

• Diamond Slurry Dispensing Systems: Specialized abrasive delivery options for diamond lapping applications.

• Alternative Lapping and Polishing Plates: Various plate materials and configurations to accommodate different finishing processes.

• Non-Standard Electrical Voltages: Additional electrical configurations to meet specific installation requirements.

• Custom Machines and Tooling: Application-specific configurations and tooling solutions.

Precision, Accessibility, and Versatility

The Model 15 Precision Open-Face Lapping Machine combines rigid construction, accurate flatness control, and straightforward operation in a compact design. Its accessible worktable, reliable drive system, and flexible tooling options make it an ideal solution for precision lapping applications requiring consistent surface quality and repeatable results.

Whether used for general-purpose lapping or specialized precision finishing, the Model 15 provides the versatility and reliability needed to support demanding surface processing requirements.
