Model 15 Single-Side Lapping Machine

Heavy-Duty Construction for Precision Lapping Applications

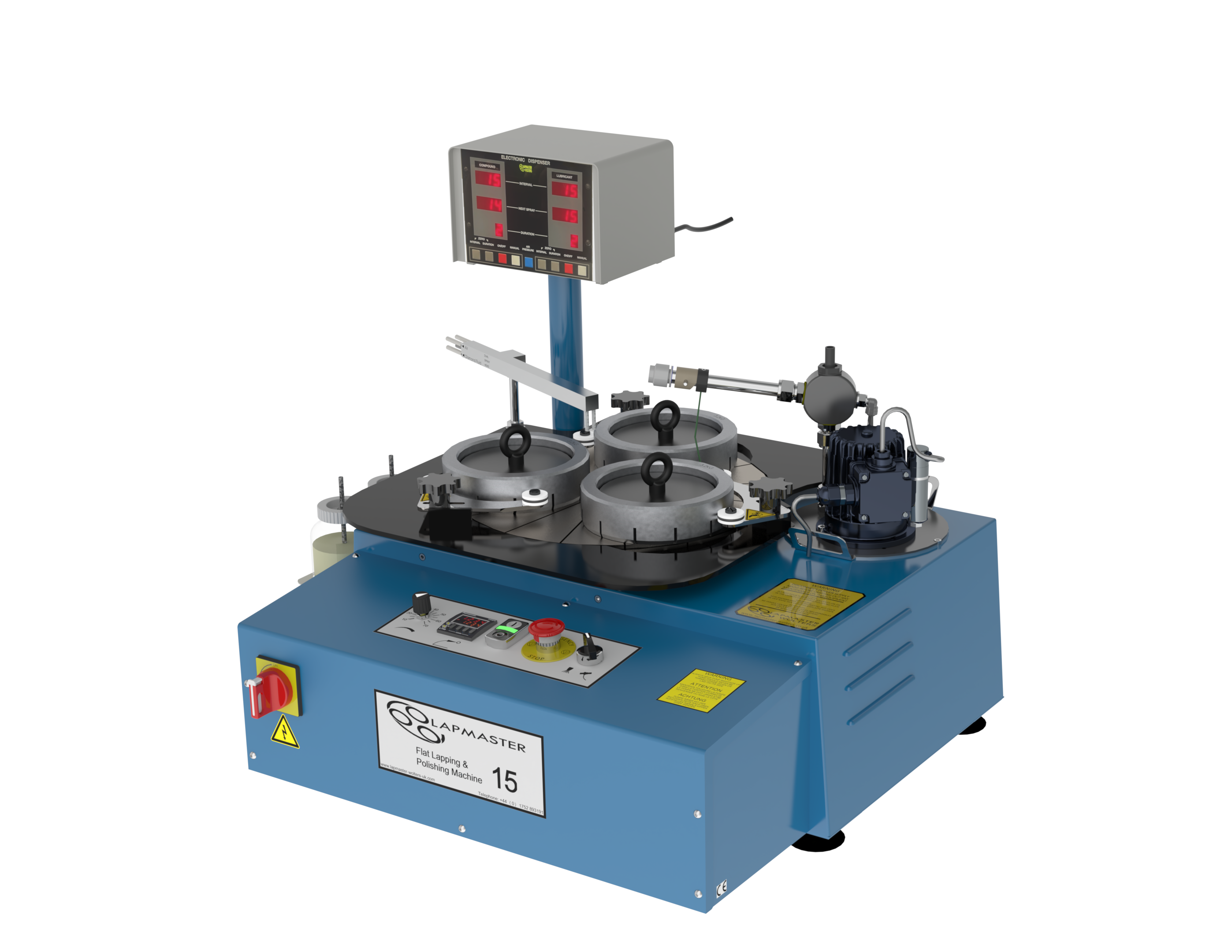

The Lapmaster Wolters Model 15 is a robust, precision-engineered single-side lapping machine designed to deliver consistent performance, reliability, and accurate flatness control. Built with a heavy-duty base, an integrated drive motor, and a reduction gearbox, the Model 15 provides a stable and dependable solution for a wide range of precision surface finishing applications.

The machine features a vertically adjustable worktable and three conditioning rings equipped with roller yoke and bearing assemblies, allowing effective in-process lap plate flatness control. Its integrated abrasive distribution system accommodates both water- and oil-based lapping slurries, ensuring consistent compound delivery throughout the process.

Powered by a high-torque 0.37 kW (0.5 hp) motor with a gear reducer, the Model 15 combines durable construction with straightforward operation. A range of optional tooling and accessories allows the machine to be configured to meet specific application requirements.

Key Features & Benefits

• Heavy-Duty Construction: Rigid machine base and vertically adjustable worktable provide stability and durability.

• Precision Flatness Control: Three cast iron conditioning rings support consistent lap plate flatness throughout operation.

• High-Quality Lapping Surface: High-density, serrated cast iron lap plate designed for reliable material removal and surface finishing.

• Integrated Abrasive Distribution: Multi-point compound delivery system supports water- and oil-based lapping applications.

• Reliable Drive System: High-torque motor and gear reducer provide dependable operation.

• Simple Operator Controls: Convenient start/stop controls and a multi-range digital process timer.

• Flexible Configuration: Available with optional tooling, speed control, cooling, and abrasive delivery enhancements.

Standard Equipment

• Heavy-duty, vertically adjustable worktable

• High-density, serrated cast iron lap plate

• Three high-density, serrated cast iron conditioning rings

• Three pressure weights

• Three blank workholder discs

• Three felt pads

• Integrated abrasive distribution system with pump and multi-point delivery

• Operator control panel with start/stop controls and digital process timer

• Waste collection tank

Optional Tooling

• Flatness gauge

• Solid stainless steel backing plates

• Composite-faced plates

• Solid cast iron lap plate

• Polishing pads

Optional Features

• Electronic variable-speed drive

• Water-cooling system

• Peristaltic pump

• Alternative lap plates

• Bench or trolley mounting

• Diamond Spray Unit (DSU)

Precision, Reliability, and Versatility

Designed for dependable operation and ease of use, the Model 15 offers a practical solution for precision lapping applications. Its durable construction, integrated flatness control, and flexible tooling options make it well suited for operations requiring consistent surface quality and repeatable results.
