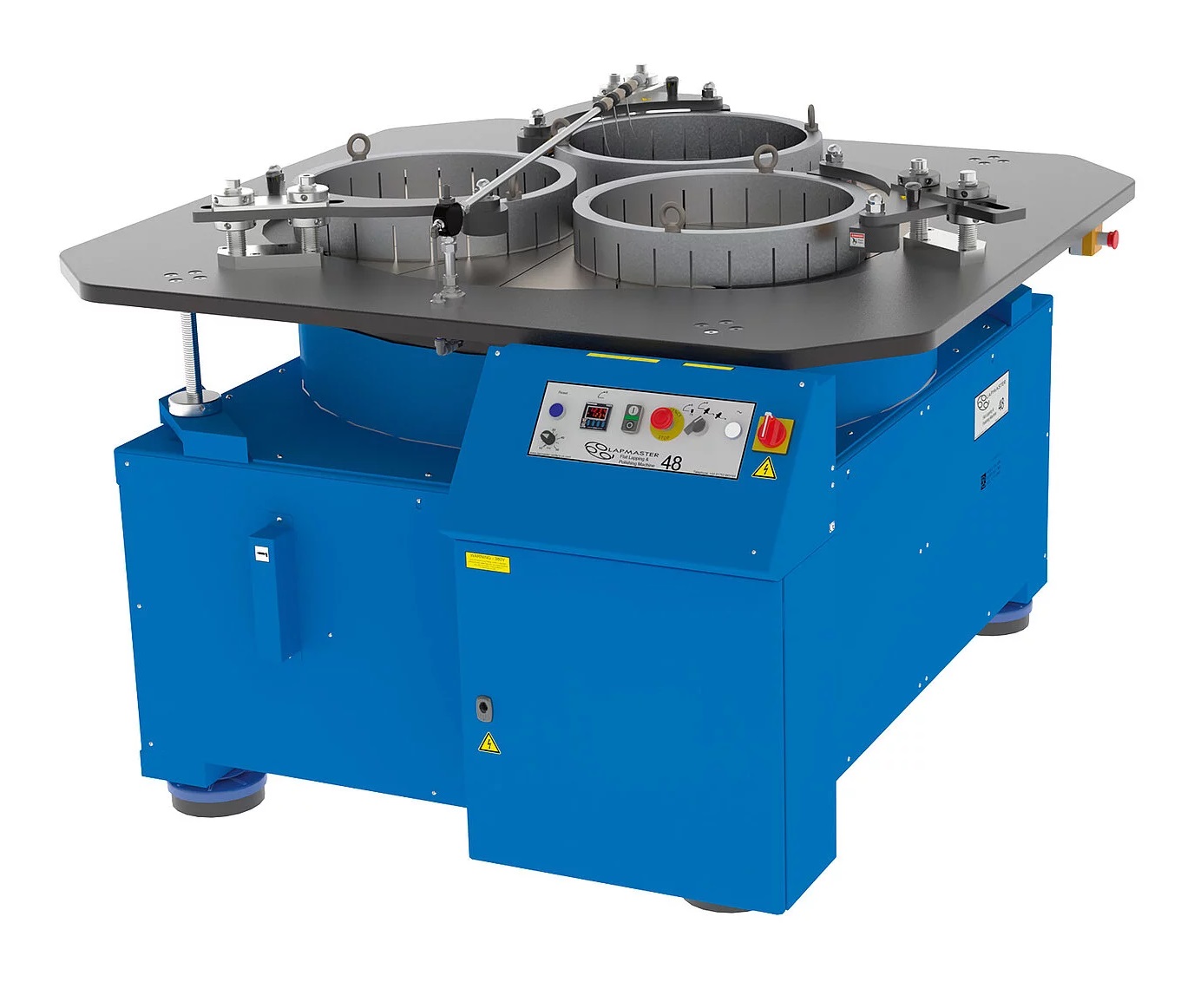

Model 48 Open Faced Flat Lapping Machine
The Model 48 machine features rugged construction and is equipped with a Ø 48 inch (1219 mm) cast iron lap plate. The machine is especially suitable for high-production environments with multi-shift operation.
- Three / four conditioning rings with roller yoke and bearing assemblies to facilitate in-process plate flatness control
- High torque drive unit with 10 hp / 7.5 kW (pneumatic lift version: 14.75 hp / 11 kW) motor and gear reducer
Plate Diameter: 48" (1219 mm), Versions: 3 or 4 Rings
Brand: Lapmaster
Characteristics Model 48 Open Faced Flat Lapping Machine
- High density, cast iron segmented (serrated) lap plate
- Three / four high density, cast iron serrated conditioning rings
- Three / four pressure weights (open face version)
- Three / four blank workholder discs
- Three / four felt pads
- Free standing abrasive system complete with pump and multi point compound distribution
- Operator panel with start / stop, controls, and multiple range digital process timer
- Waste tank
OPTIONAL TOOLING
- Flatness gauge
- Solid stainless steel backing plates
- Composite faced segments
- Polishing pads
OPTIONAL FEATURES
- Electronic variable speed drive
- Water cooled
- Peristaltic pump
- Optional plates
- PLC
- Diamond unit
