Diamond Wire Saw for Hard and Brittle Materials

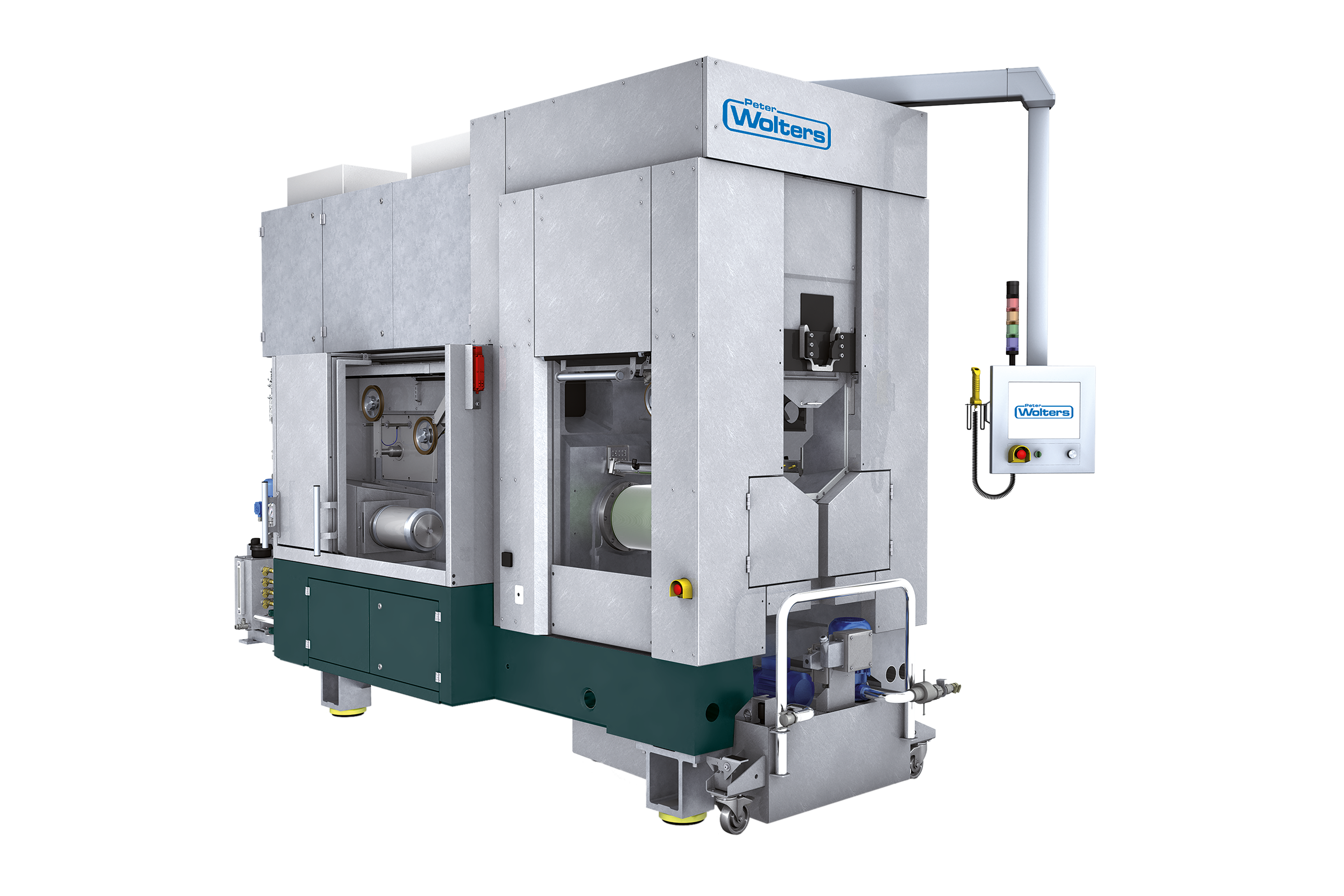

The DW 288 S6 is based on the widely used DW 288 prod­uct fam­ily. It has been op­ti­mized for 6” work­pieces with ma­te­r­ial loads of up to 650 mm. The work­piece rock­ing tech­nol­ogy, com­bined with the adap­tive feed, en­sures high­est wafer qual­ity, max­i­mum through­put and low­est cost of own­er­ship.

Whether slic­ing sap­phire, sil­i­con, ce­ram­ics, quartz, mag­netic or other hard and brit­tle ma­te­ri­als, the DW 288 S6 of­fers clear ad­van­tages in pro­duc­tiv­ity, ro­bust­ness and qual­ity. Rel­e­vant ap­pli­ca­tions in­clude LED and smart light­ing, au­to­mo­tive and op­tics, con­sumer elec­tron­ics and aero­space.

The DW 288 S6 uses a best-in-class work­piece rock­ing con­cept for out­stand­ing re­sults. It en­ables higher ac­ces­si­bil­ity and is par­tic­u­larly user-friendly. With its mon­i­tor­ing and log­ging ca­pa­bil­i­ties, the equip­ment is ready for In­dus­try 4.0.

Benefits of the DW 288 S6

  • Increased throughput
  • Highest precision and quality
  • Robustness and durability
  • Higher degree of automation
  • Market-proven design

Based on in-depth un­der­stand­ing of the slic­ing process with diamond wire, leading equip­ment has been de­vel­oped up to the DW 288 S6. Apart from its ad­vanced elec­tri­cal and me­chan­i­cal sys­tem de­sign, the soft­ware has been up­graded to en­sure max­i­mum process con­trol and us­abil­ity in mod­ern man­u­fac­tur­ing en­vi­ron­ments.

Characteristics DW288S6 Slicing Saws

• Smallest axis distance: Optimized for . 6″
• High capacity: 650 mm web length
• High throughput: 30 m/s wire speed, 10 m/s2 acceleration
• Latest generation work piece rocking technology
• Adaptive feed
• New CF system: Low maintenance heat exchanger, stable temperature in entire system, shortest pipe path
• Easy operation: HMI on 15″ touch screen, production assistant, easy to train, easy to use
• Recipe generator for 60-step recipe
• Ready for Industry 4.0
• Various options: i. e. Diamond Wire Management System (DWMS)
